卡特零件查询（8） SCREED CONTROL JUNCTION BOX ASSEMBLY
广数供应链运营团队, 17 02月, 2025，浏览：
476 次

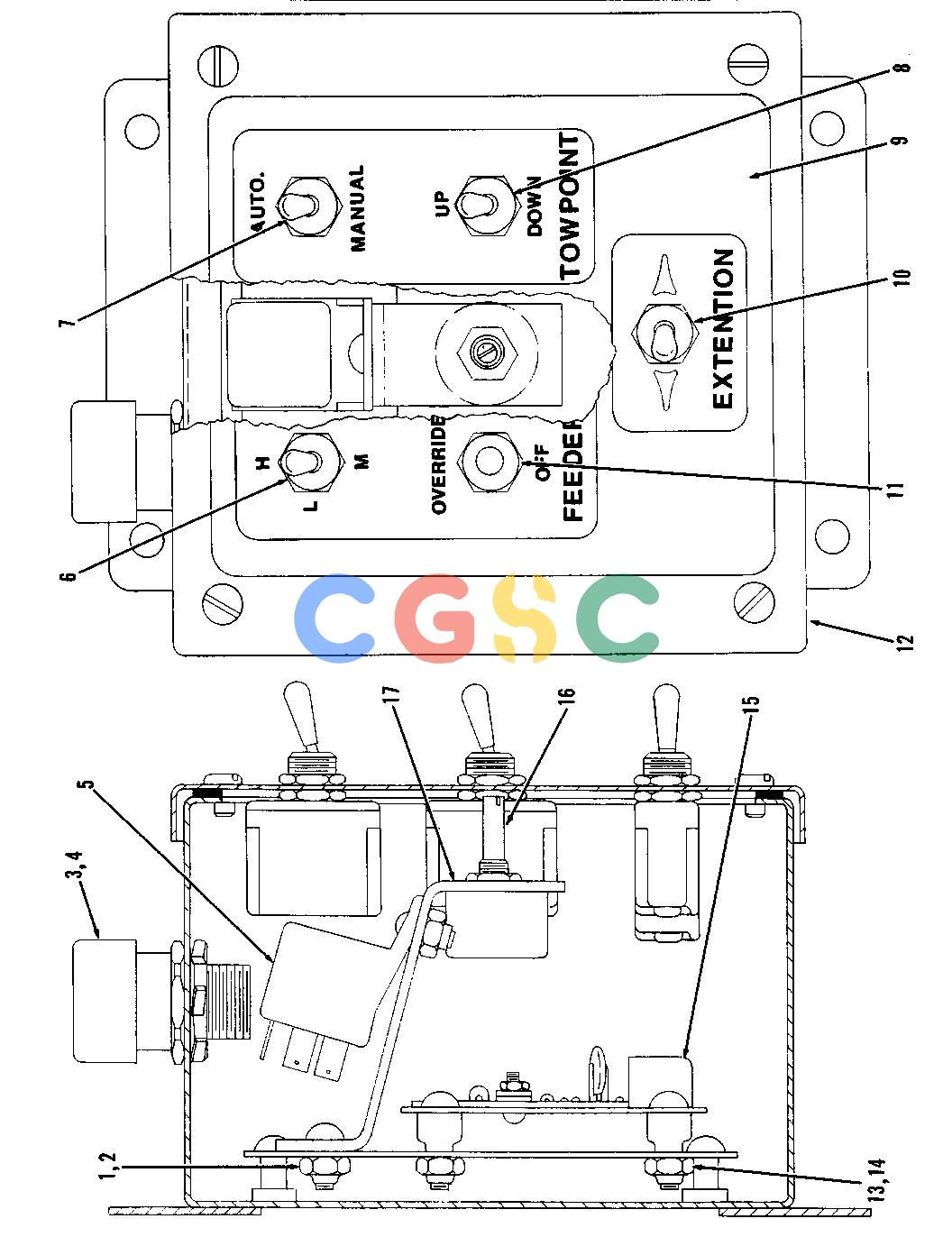

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| | | [1] | JUNCTION BOX ASSEMBLY, SCREED CONTROL |
| 1. | | [3] | SCREW, PAD HD., #10-32 X 1/2IN. |
| 2. | | [3] | ELASTIC STOP NUT, #10-32 |
| 3. | | [1] | CONNECTOR, STRAIGHT (CGB) |
| 4. | | [1] | LOCKNUT |
| 5. | | [1] | RELAY, S.P.D.T. |
| 6. | | [1] | SWITCH, TOGGLE, 1TL1-1 |
| 7. | | [1] | SWITCH, TOGGLE, 4TL1-3 |
| 8. | | [1] | SWITCH, TOGGLE, 2TL1-7 |
| 9. | | [1] | DECAL, SCREED J-BOX |
| 10. | | [1] | SWITCH, TOGGLE, 1TL1-70 |
| 11. | | [1] | SWITCH, TOGGLE, 2TL1-70 |
| 12. | | [1] | J-BOX, MODIFIED |
| 13. | | [4] | SCREW, PAN HD., #8-32 X 3/4IN. |
| 14. | | [4] | ELASTIC STOP NUT, #8-32 |
| 15. | | [1] | AMPLIFIER BOARD |
| 16. | | [1] | POTENTIOMETER, 250 OHM, 10%, 2 WATTS |
| 17. | | [1] | Z-BRACKET |
| | F | [1] | RESISTOR, 40 OHM, 5 WATTS |
| | F | [1] | DIODE, 1N4004 |
| | F | [1] | CABLE, J-BOX, LEFT SIDE |
| | F | [1] | CABLE, J-BOX, RIGHT SIDE |
| | F | | NOT SHOWN. |
