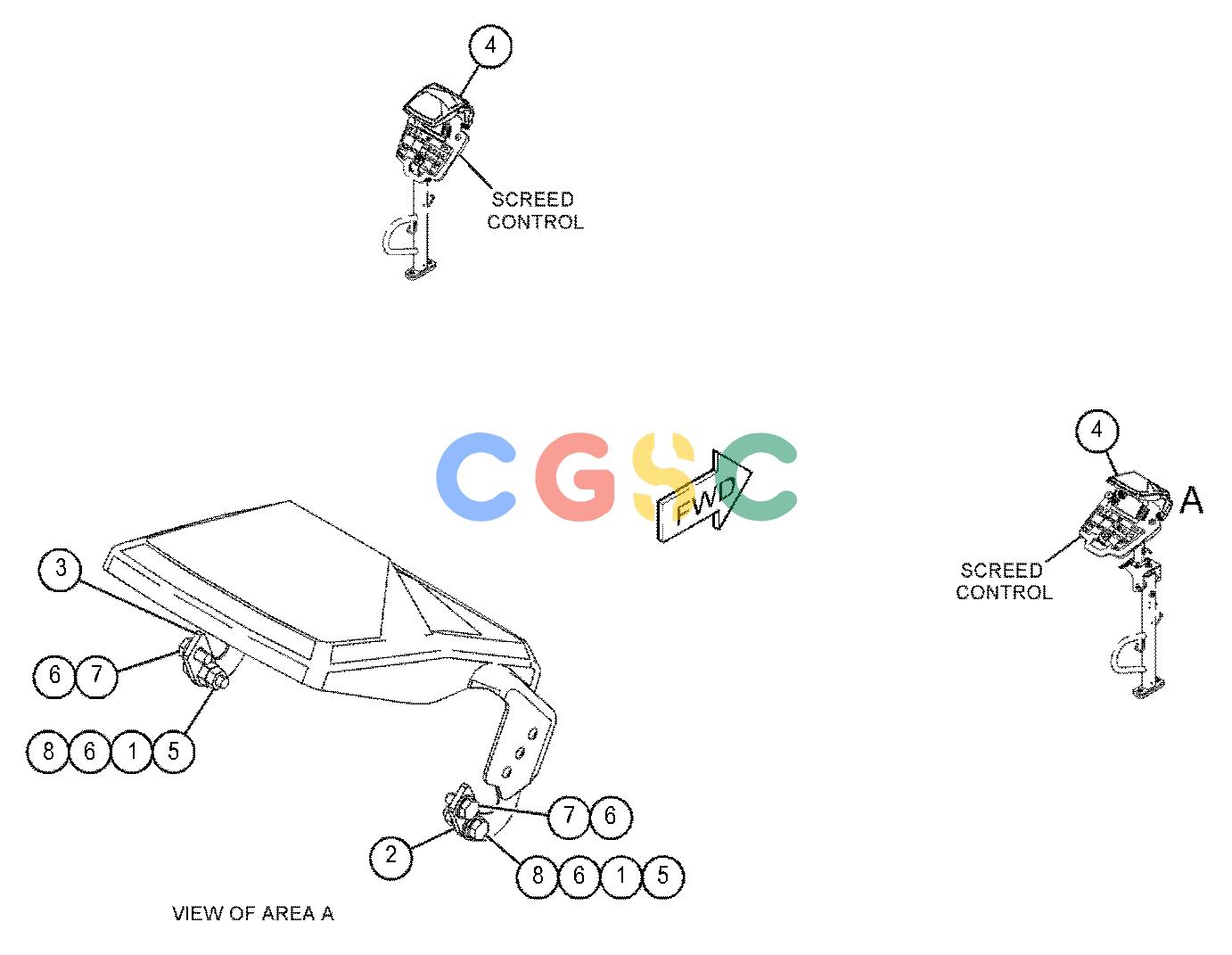

| Pos. | Part No | Qty | Parts name | Comments |
|---|---|---|---|---|
| 1. | 236-5149 | [4] | WASHER-NYLON(11.17X19.05X1.6MM THK) | |
| 2. | 482-1503 | [2] | HINGE AS(RH) | |
| (EACH INCLUDES) | ||||
| 8T-3490M | [1] | NUT-WELD(M10X1.5-THD) | ||
| 3. | 482-1504 | [2] | HINGE AS(LH) | |
| (EACH INCLUDES) | ||||
| 8T-3490M | [1] | NUT-WELD(M10X1.5-THD) | ||
| 4. | 484-0471 | [2] | VISOR AS | |
| 5. | 344-5675M | [4] | NUT(M10X1.5-THD) | |
| 6. | 8T-4121 | [8] | WASHER-HARD(11X21X2.5-MM THK) | |
| 7. | 8T-4137M | [4] | BOLT(M10X1.5X20-MM) | |
| 8. | 8T-4196M | [4] | BOLT(M10X1.5X35-MM) | |
| M | METRIC PART | |||
