卡特零件查询（SE50） 499-1424: ACTUATOR GP
广数供应链运营团队, 18 02月, 2025，浏览：
360 次

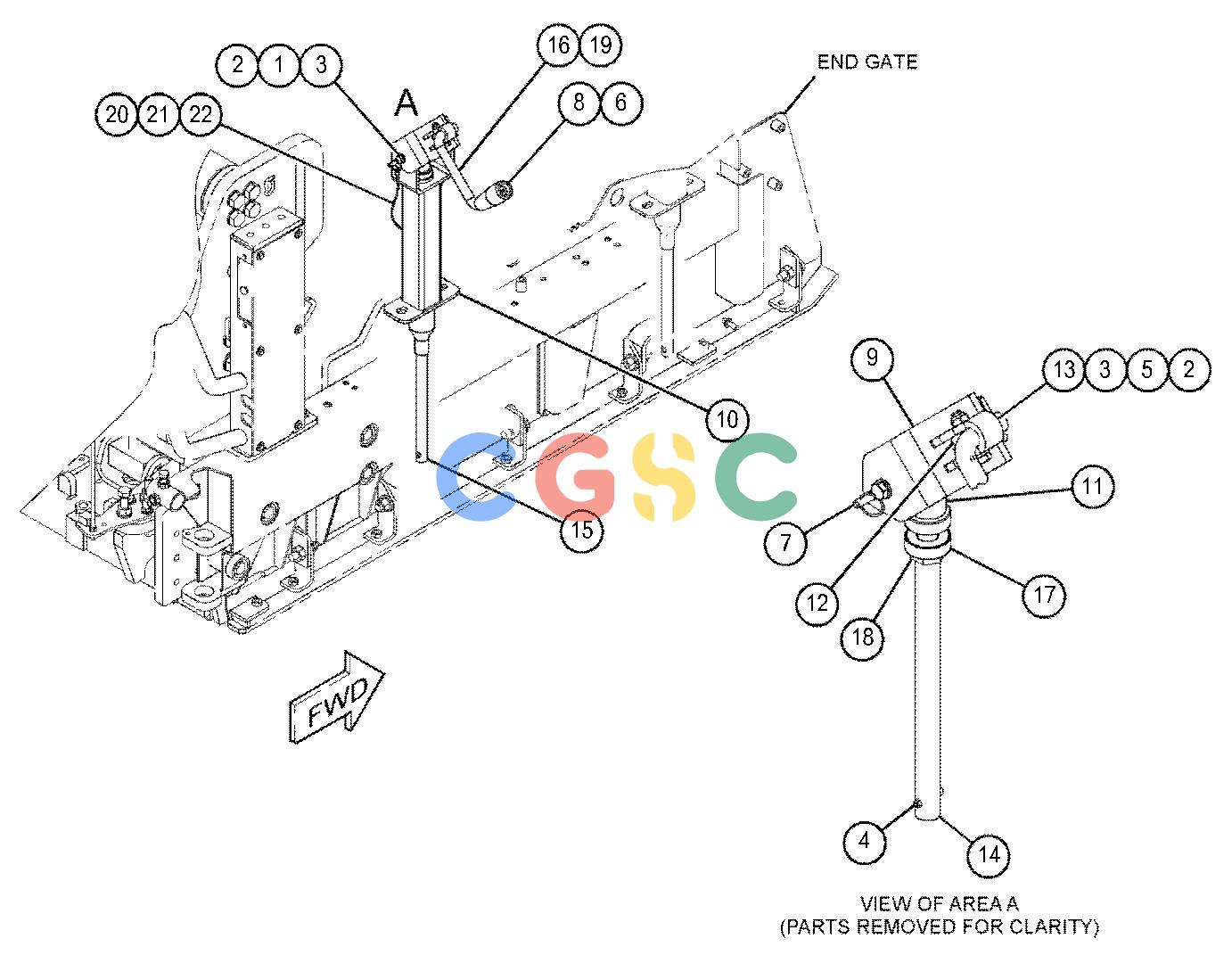

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 8T-4908M | [2] | BOLT(M8X1.25X25-MM) | |
| 2. | 6V-9189M | [3] | LOCKNUT(M8X1.25-THD) | |
| 3. | 8T-4224 | [3] | WASHER-HARD(8.8X16X2-MM THK) | |
| 4. | 095-0886 | [3] | PIN-SPRING | |
| 5. | 099-3649M | [1] | BOLT(M8X1.25X40-MM) | |
| 6. | 174-6944 | [1] | BOLT-SPECIAL | |
| 7. | 205-6459 | [1] | PIN-LOCK | |
| 8. | 491-2395 | [1] | HANDLE | |
| 9. | 499-1428 | [1] | BRACKET | |
| 10. | 509-3782 | [1] | TUBE AS | |
| 11. | 509-3787 | [1] | JOINT AS-UNIVERSAL | |
| | 8L-8413 | [2] | STRAP-CABLE(WHITE) | |
| | | [1] | BOOT |
| 12. | 509-3788 | [1] | ROD | |
| 13. | 509-3789 | [1] | BRACKET | |
| 14. | 509-3791 | [1] | SCREW-DRIVE | |
| 15. | 509-3792 | [1] | TUBE AS(INNER) | |
| 16. | 523-6057 | [1] | CRANK | |
| 17. | 537-5541 | [2] | BEARING-THRUST | |
| 18. | 098-5747M | [1] | NUT(M16X2-THD) | |
| 19. | 3B-4618 | [1] | PIN-COTTER | |
| 20. | 8T-4205 | [1] | WASHER-HARD(7.2X14.5X2-MM THK) | |
| 21. | 8T-4970M | [1] | BOLT(M6X1X14-MM) | |
| 22. | 252-5218 | [1] | LANYARD(371-MM) | |
| | M | | METRIC PART |
