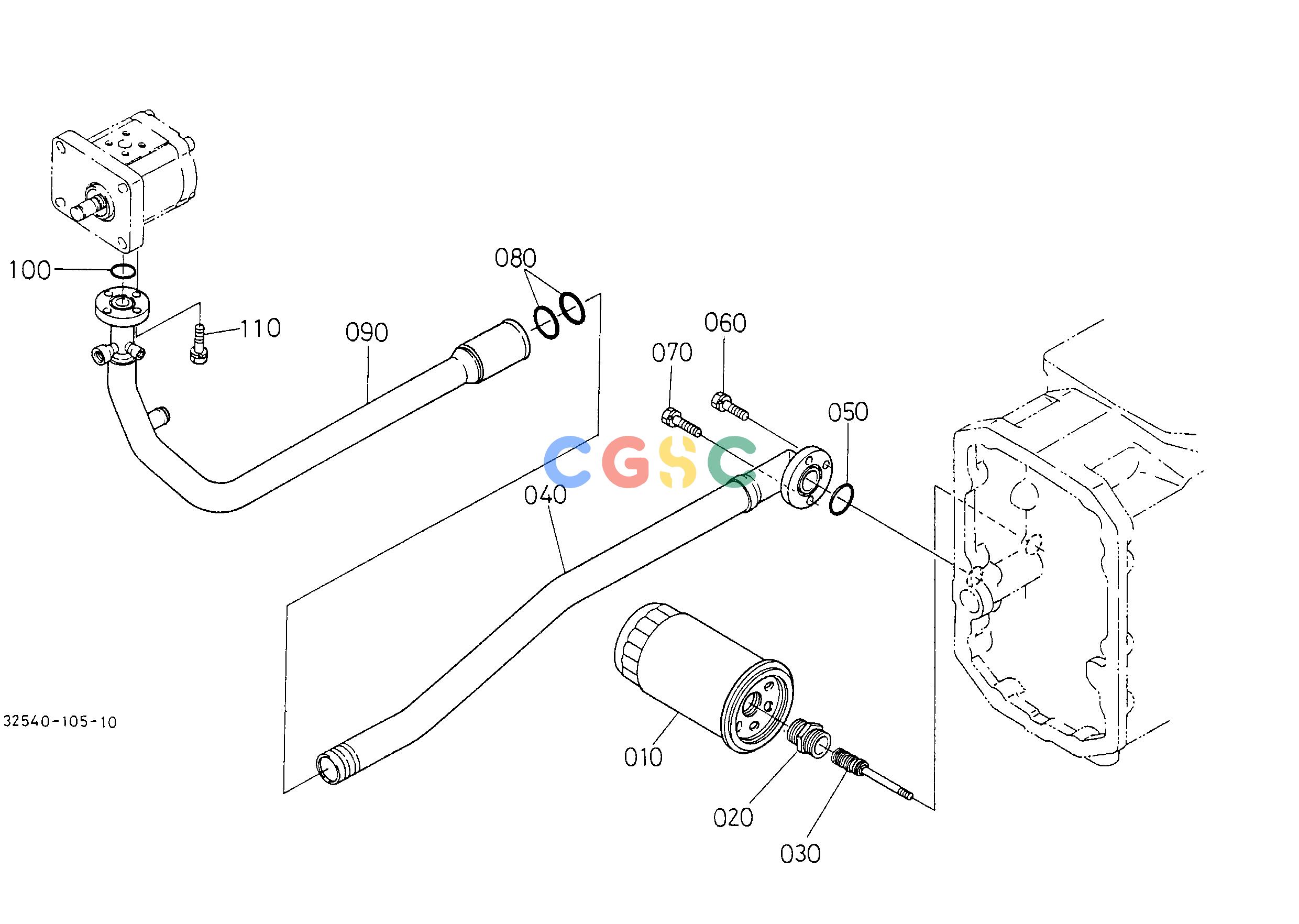

久保田零件查询T10901 HYDRAULIC PIPE (SUCTION) HYDRAULIC SYSTEMEPC Kubota online
广数供应链运营团队, 18 02月, 2025，浏览：
735 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 010. |
3259038380
|
[1] |
FILTER OIL
|
1.4740(lbs); 0.670
|
| 020. |
3259038330
|
[1] |
JOINT SCREW
|
0.1100(lbs); 0.050
|
| 030. |
3374082640
|
[1] |
FILTER MAGNET
|
0.2310(lbs); 0.105
|
| 040. |
3255038110
|
[1] |
PIPE SUCTION
|
1.9800(lbs); 0.900
|
| 040. |
3255038112
|
[1] |
PIPE SUCTION
|
2.2000(lbs); 1.000
|
| 050. |
0481110320
|
[1] |
O RING
|
0.0022(lbs); 0.001
|
| 060. |
0112350820
|
[1] |
BOLT
|
0.0242(lbs); 0.011
|
| 070. |
0112350825
|
[2] |
BOLT
|
0.0286(lbs); 0.013
|
| 080. |
0481007310
|
[1] |
O RING
|
0.0022(lbs); 0.001
|
| 080. |
0481100260
|
[2] |
O RING
|
0.0022(lbs); 0.001
|
| 090. |
3254038120
|
[1] |
PIPE SUCTION
|
0.0000(lbs); 0.000
|
| 090. |
3254038122
|
[1] |
PIPE SUCTION
|
0.0000(lbs); 0.000
|
| 090. |
3254038123
|
[1] |
PIPE SUCTION
|
1.8040(lbs); 0.820
|
| 100. |
0481110240
|
[1] |
O RING
|
0.0022(lbs); 0.001
|
| 110. |
0102550625
|
[4] |
BOLT
|
0.0220(lbs); 0.010
|
