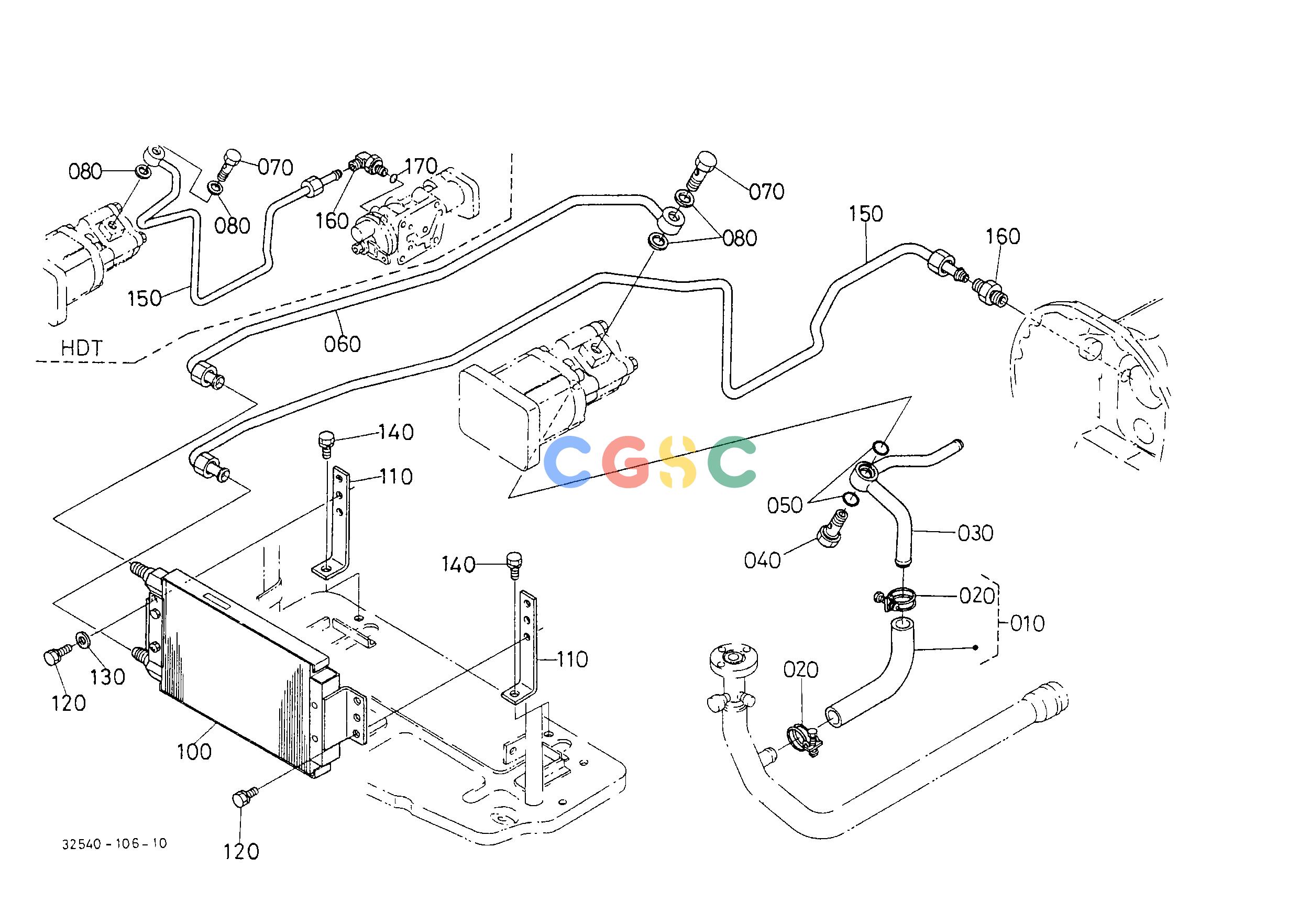

久保田零件查询T11001 HYDRAULIC PIPE (SUCTION)(HDT/HDT-W) HYDRAULIC SYSTEMEPC Kubota online

广数供应链运营团队, 18 02月, 2025，浏览： 1006 次

Pos.	Part No	Qty	Parts name	Comments
010.	3259038400	[1]	ASSY HOSE	0.2200(lbs); 0.100
020.	0931888230	[2]	CLAMP HOSE	0.0176(lbs); 0.008
030.	3255038420	[1]	PIPE SUCTION	0.3080(lbs); 0.140
040.	6659136250	[1]	JOINT	0.1760(lbs); 0.080
050.	0481000180	[2]	O RING	0.0022(lbs); 0.001
060.	3254039470	[1]	PIPE OIL COOLER	HDT-W; <=60406 0.5720(lbs); 0.260
060.	3254039472	[1]	PIPE OIL COOLER	HDT-W; =>60407 0.5940(lbs); 0.270
070.	3139146370	[1]	BOLT JOINT	0.1100(lbs); 0.050
080.	0471400200	[2]	GASKET	0.0022(lbs); 0.001
100.	3130110800	[1]	COOLER OIL	HDT-W; <=60406 2.3320(lbs); 1.060
100.	3259039460	[1]	COOLER OIL	HDT-W; =>60407 2.4860(lbs); 1.130
110.	3259039490	[2]	BRACKET OIL COOLER	HDT-W 0.2640(lbs); 0.120
120.	0112350820	[3]	BOLT	HDT-W 0.0242(lbs); 0.011
130.	0401350080	[1]	WASHER PLAIN	HDT-W 0.0066(lbs); 0.003
140.	0113351020	[2]	BOLT	0.0440(lbs); 0.020
150.	3254039480	[1]	PIPE SHUTTLE	HDT 0.5500(lbs); 0.250
150.	3259039500	[1]	PIPE SHUTTLE	HDT-W; <=60406 0.7040(lbs); 0.320
150.	3259039503	[1]	PIPE SHUTTLE	HDT-W; =>60407 0.6600(lbs); 0.300
160.	3259039340	[1]	JOINT	HDT 0.0000(lbs); 0.000
160.	3253038940	[1]	JOINT	HDT-W 0.0000(lbs); 0.000
170.	0481000110	[1]	O RING	HDT 0.0022(lbs); 0.001
