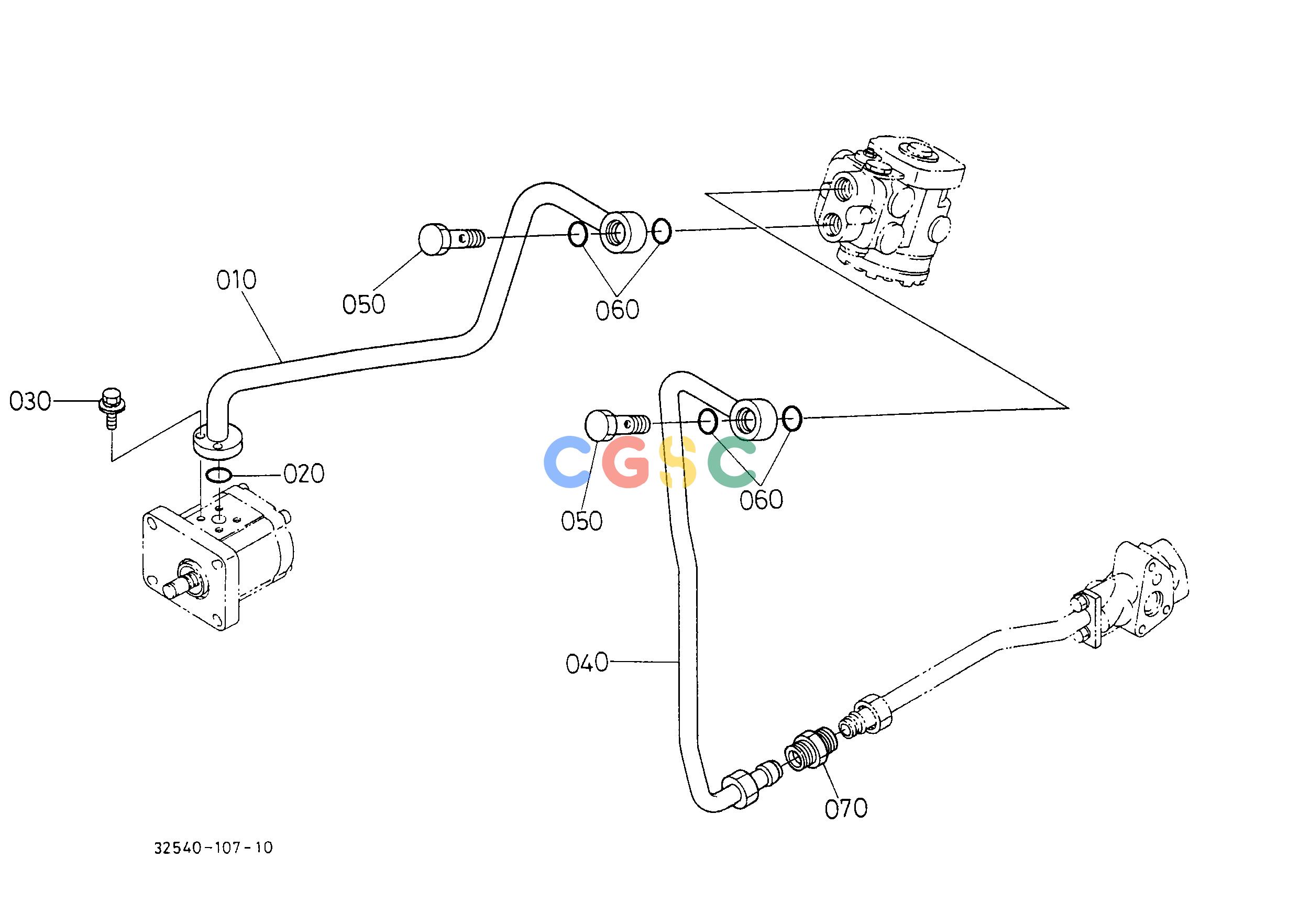

久保田零件查询T11101 HYDRAULIC PIPE (DELIVERY) 1 HYDRAULIC SYSTEMEPC Kubota online
广数供应链运营团队, 18 02月, 2025，浏览：
289 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 010. |
3254038170
|
[1] |
PIPE DELIVERY
|
1.1000(lbs); 0.500
|
| 020. |
0481000200
|
[1] |
O RING
|
0.0022(lbs); 0.001
|
| 030. |
0102550625
|
[3] |
BOLT
|
0.0220(lbs); 0.010
|
| 040. |
3255038183
|
[1] |
PIPE DELIVERY
|
1.3200(lbs); 0.600
|
| 040. |
H325038100
|
[1] |
PIPE DELIVERY
|
1.3200(lbs); 0.600
|
| 050. |
3217038170
|
[2] |
BOLT HYD.PIPE JOINT
|
0.1980(lbs); 0.090
|
| 060. |
0481000220
|
[4] |
O RING
|
0.0022(lbs); 0.001
|
| 070. |
3253038720
|
[1] |
JOINT
|
0.0000(lbs); 0.000
|
