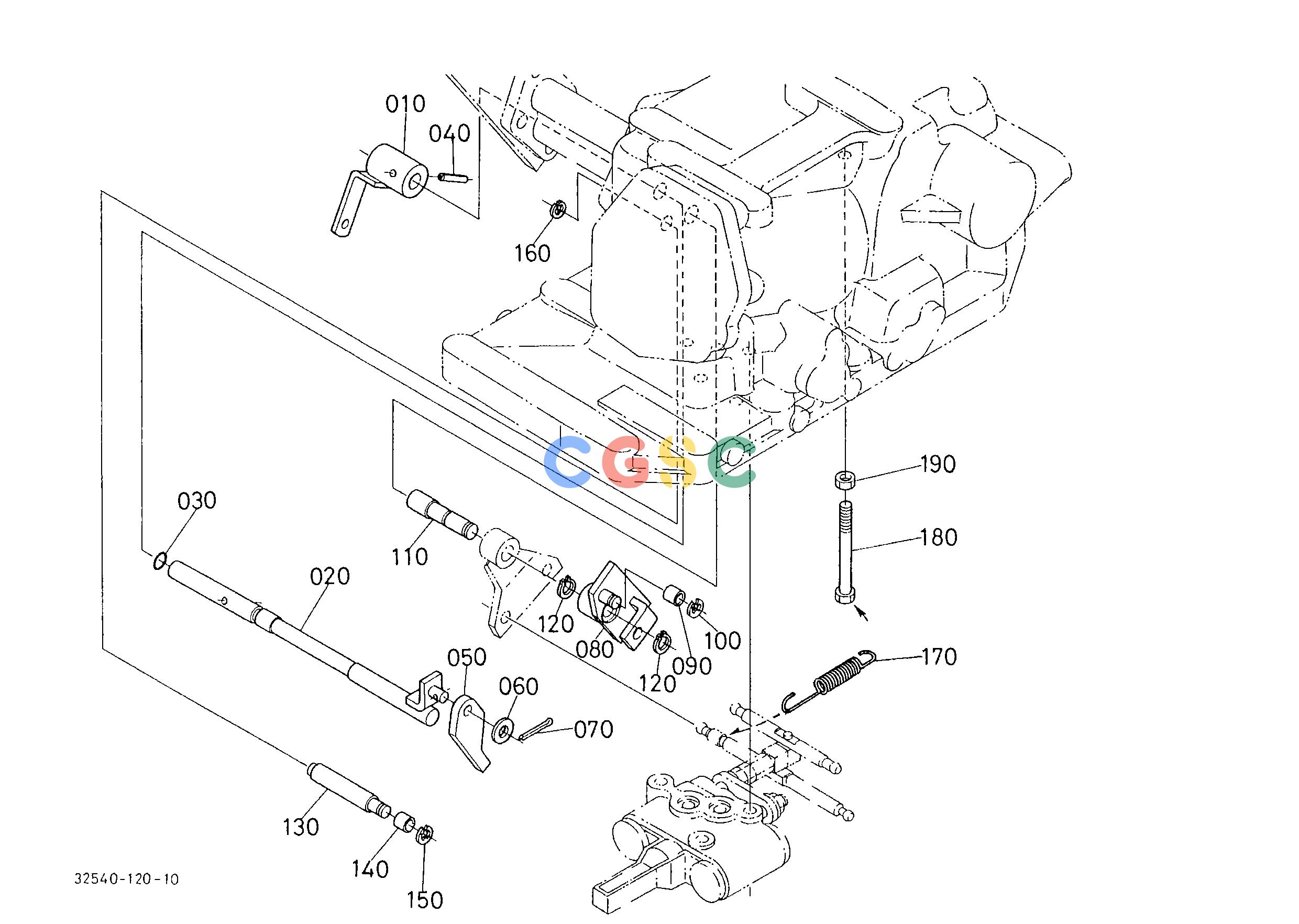

| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 010. |
3259037550
|
[1] |
ARM LEVER
|
0.3080(lbs); 0.140
|
| 020. |
3259037560
|
[1] |
SHAFT LEVER
|
0.7480(lbs); 0.340
|
| 030. |
0481106100
|
[1] |
O RING
|
0.0022(lbs); 0.001
|
| 040. |
0541100430
|
[1] |
PIN SPRING
|
0.0044(lbs); 0.002
|
| 050. |
3259037570
|
[1] |
LINK CAM
|
0.1100(lbs); 0.050
|
| 060. |
0401350080
|
[1] |
WASHER PLAIN
|
0.0066(lbs); 0.003
|
| 070. |
0551150215
|
[1] |
PIN SPLIT
|
0.0022(lbs); 0.001
|
| 080. |
3259037580
|
[1] |
LINK
|
0.3520(lbs); 0.160
|
| 090. |
3259037590
|
[1] |
RING INNER
|
0.0440(lbs); 0.020
|
| 100. |
0461350060
|
[1] |
CIRCLIP EXTERNAL
|
0.0022(lbs); 0.001
|
| 110. |
3259037620
|
[1] |
SHAFT FULCRUM
|
0.1386(lbs); 0.063
|
| 120. |
0461200120
|
[2] |
CIRCLIP EXTERNAL
|
0.0022(lbs); 0.001
|
| 130. |
3259037630
|
[1] |
SHAFT FULCRUM
|
0.1540(lbs); 0.070
|
| 140. |
3259037590
|
[1] |
RING INNER
|
0.0440(lbs); 0.020
|
| 150. |
0461350060
|
[1] |
CIRCLIP EXTERNAL
|
0.0022(lbs); 0.001
|
| 160. |
0461350070
|
[1] |
CIRCLIP EXTERNAL
|
0.0022(lbs); 0.001
|
| 170. |
3259037642
|
[1] |
SPRING RETURN
|
0.0660(lbs); 0.030
|
| 180. |
0115350880
|
[1] |
BOLT
|
0.0660(lbs); 0.030
|
| 190. |
0215650080
|
[1] |
NUT
|
0.0088(lbs); 0.004
|
