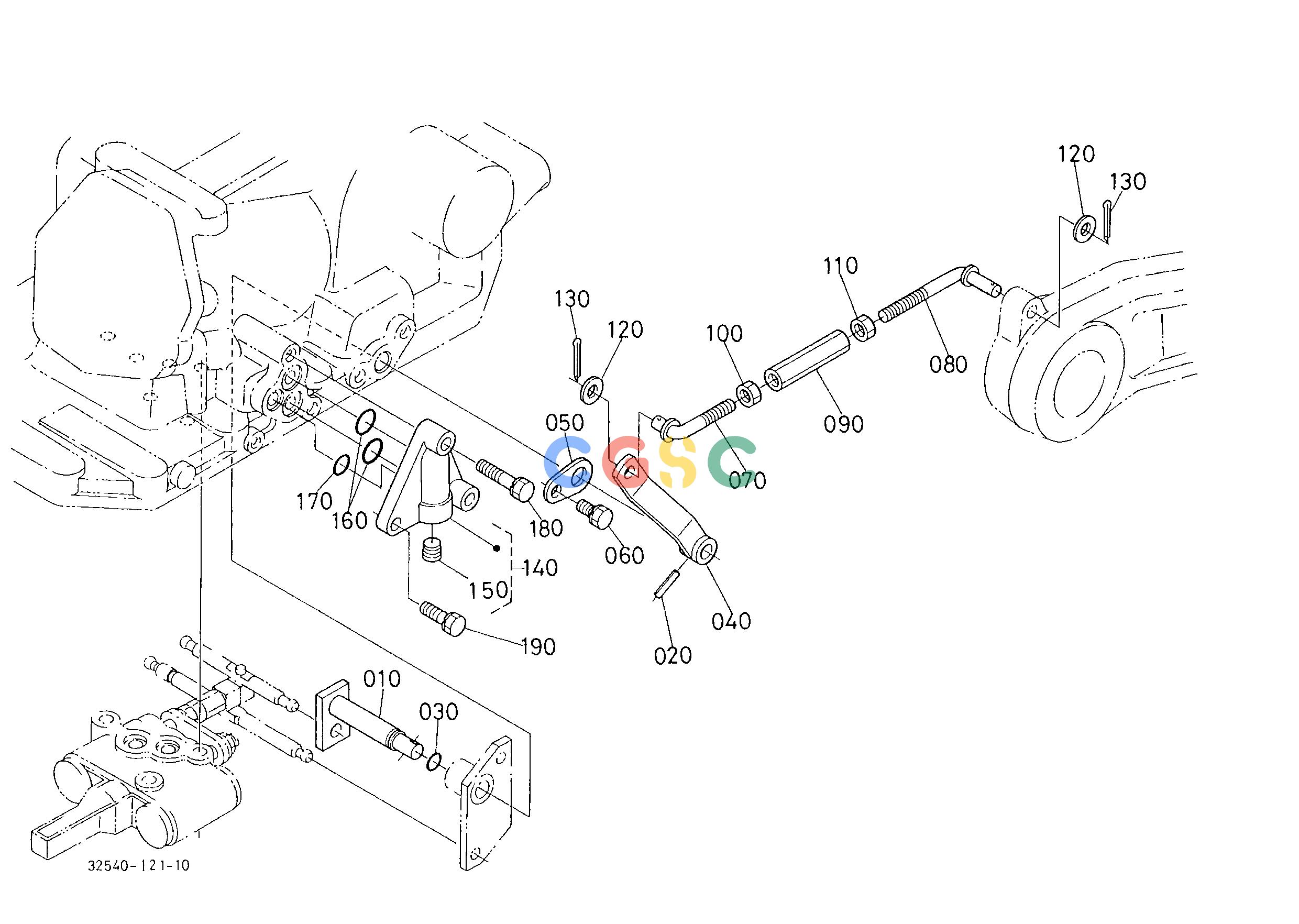

久保田零件查询T12300 FEED BACK LEVER 1 HYDRAULIC SYSTEMEPC Kubota online
广数供应链运营团队, 18 02月, 2025，浏览：
127 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 010. |
3259037650
|
[1] |
SHAFT FEED BACK
|
0.3300(lbs); 0.150
|
| 020. |
0541100422
|
[1] |
PIN SPRING
|
0.0022(lbs); 0.001
|
| 030. |
0481106100
|
[1] |
O RING
|
0.0022(lbs); 0.001
|
| 040. |
3259037660
|
[1] |
LEVER FEED BACK
|
0.1870(lbs); 0.085
|
| 050. |
3824036890
|
[1] |
SET PLATE
|
0.0220(lbs); 0.010
|
| 060. |
0112360816
|
[1] |
BOLT
|
0.0220(lbs); 0.010
|
| 070. |
3253037750
|
[1] |
ROD CONTROL
|
0.0484(lbs); 0.022
|
| 080. |
3253037760
|
[1] |
ROD CONTROL
|
0.0770(lbs); 0.035
|
| 090. |
6659142410
|
[1] |
TURNBUCKLE
|
0.1012(lbs); 0.046
|
| 100. |
0211250080
|
[1] |
NUT
|
0.0066(lbs); 0.003
|
| 110. |
3730041330
|
[1] |
NUT
|
0.0110(lbs); 0.005
|
| 120. |
0401350080
|
[2] |
WASHER PLAIN
|
0.0066(lbs); 0.003
|
| 130. |
0551150215
|
[2] |
PIN SPLIT
|
0.0022(lbs); 0.001
|
| 140. |
3253036650
|
[1] |
BLOCK BY-PASS
|
0.9900(lbs); 0.450
|
| 150. |
3135137150
|
[1] |
PLUG
|
0.0132(lbs); 0.006
|
| 160. |
0481000160
|
[2] |
O RING
|
0.0022(lbs); 0.001
|
| 170. |
0481100120
|
[1] |
O RING
|
0.0022(lbs); 0.001
|
| 180. |
0112350838
|
[2] |
BOLT
|
0.0440(lbs); 0.020
|
| 190. |
0112350825
|
[1] |
BOLT
|
0.0286(lbs); 0.013
|
