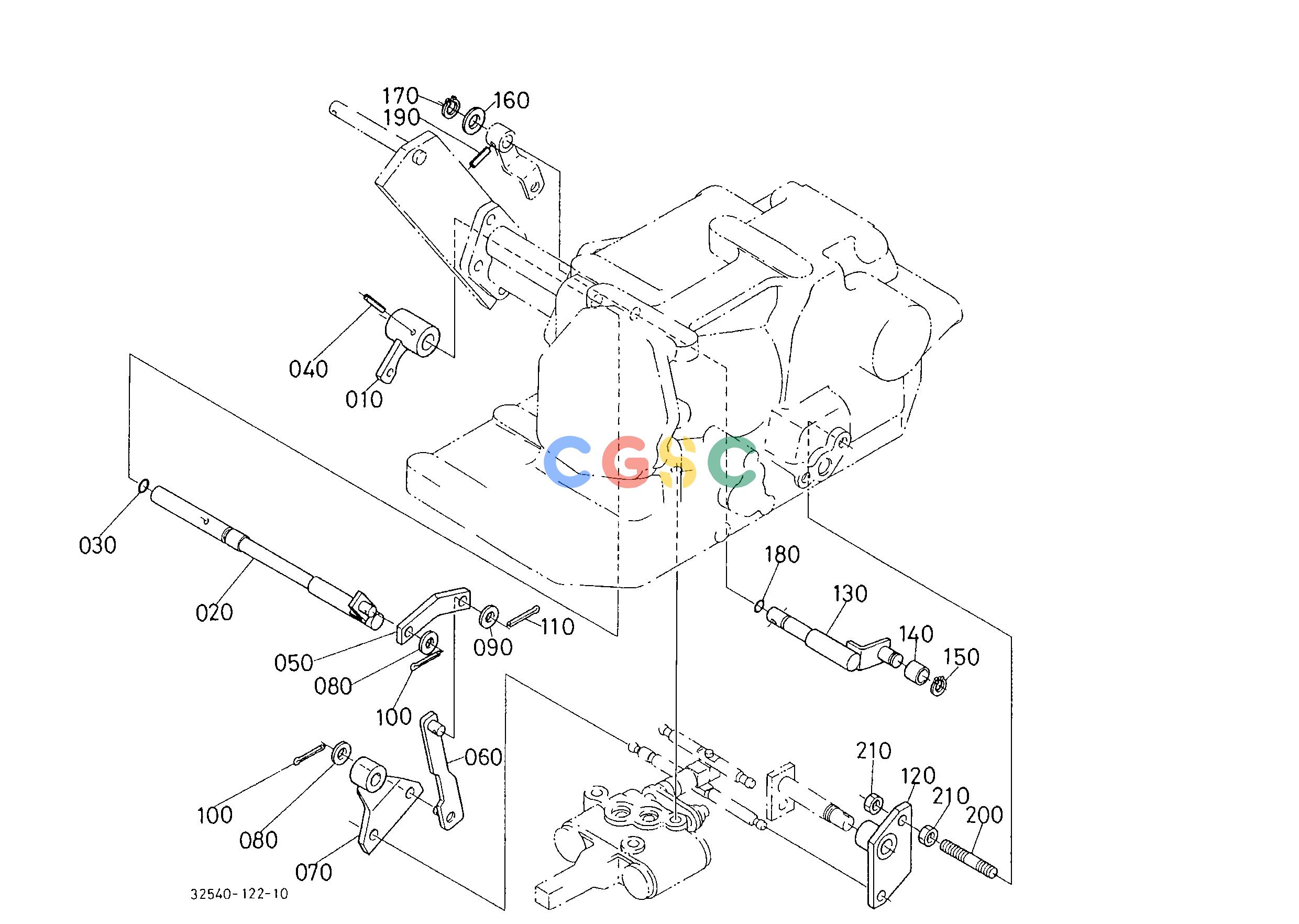

久保田零件查询T12400 FEED BACK LEVER 2 HYDRAULIC SYSTEMEPC Kubota online
广数供应链运营团队, 18 02月, 2025，浏览：
796 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 010. |
3259037670
|
[1] |
ARM LEVER
|
0.2530(lbs); 0.115
|
| 020. |
3259037680
|
[1] |
SHAFT LEVER
|
0.7480(lbs); 0.340
|
| 030. |
0481106100
|
[1] |
O RING
|
0.0022(lbs); 0.001
|
| 040. |
0541100430
|
[1] |
PIN SPRING
|
0.0044(lbs); 0.002
|
| 050. |
3259037692
|
[1] |
LINK
|
0.1100(lbs); 0.050
|
| 060. |
3259037702
|
[1] |
LINK
|
0.1760(lbs); 0.080
|
| 070. |
3259037710
|
[1] |
LINK
|
0.3080(lbs); 0.140
|
| 080. |
0401350080
|
[2] |
WASHER PLAIN
|
0.0066(lbs); 0.003
|
| 090. |
0401150100
|
[1] |
WASHER PLAIN
|
0.0044(lbs); 0.002
|
| 100. |
0551150215
|
[2] |
PIN SPLIT
|
0.0022(lbs); 0.001
|
| 110. |
0551150320
|
[1] |
PIN SPLIT
|
0.0044(lbs); 0.002
|
| 120. |
3259037720
|
[1] |
ARM LOCK
|
0.3960(lbs); 0.180
|
| 130. |
3259037730
|
[1] |
SHAFT FEED BACK
|
0.3674(lbs); 0.167
|
| 140. |
3259037740
|
[1] |
RING INNER
|
0.0220(lbs); 0.010
|
| 150. |
0461200120
|
[1] |
CIRCLIP EXTERNAL
|
0.0022(lbs); 0.001
|
| 160. |
0401150140
|
[1] |
WASHER PLAIN
|
0.0154(lbs); 0.007
|
| 170. |
0461200140
|
[1] |
CIRCLIP EXTERNAL
|
0.0022(lbs); 0.001
|
| 180. |
0481106100
|
[1] |
O RING
|
0.0022(lbs); 0.001
|
| 190. |
0541100425
|
[1] |
PIN SPRING
|
0.0022(lbs); 0.001
|
| 200. |
3726038170
|
[1] |
STUD
|
0.1320(lbs); 0.060
|
| 210. |
0215650080
|
[2] |
NUT
|
0.0088(lbs); 0.004
|
