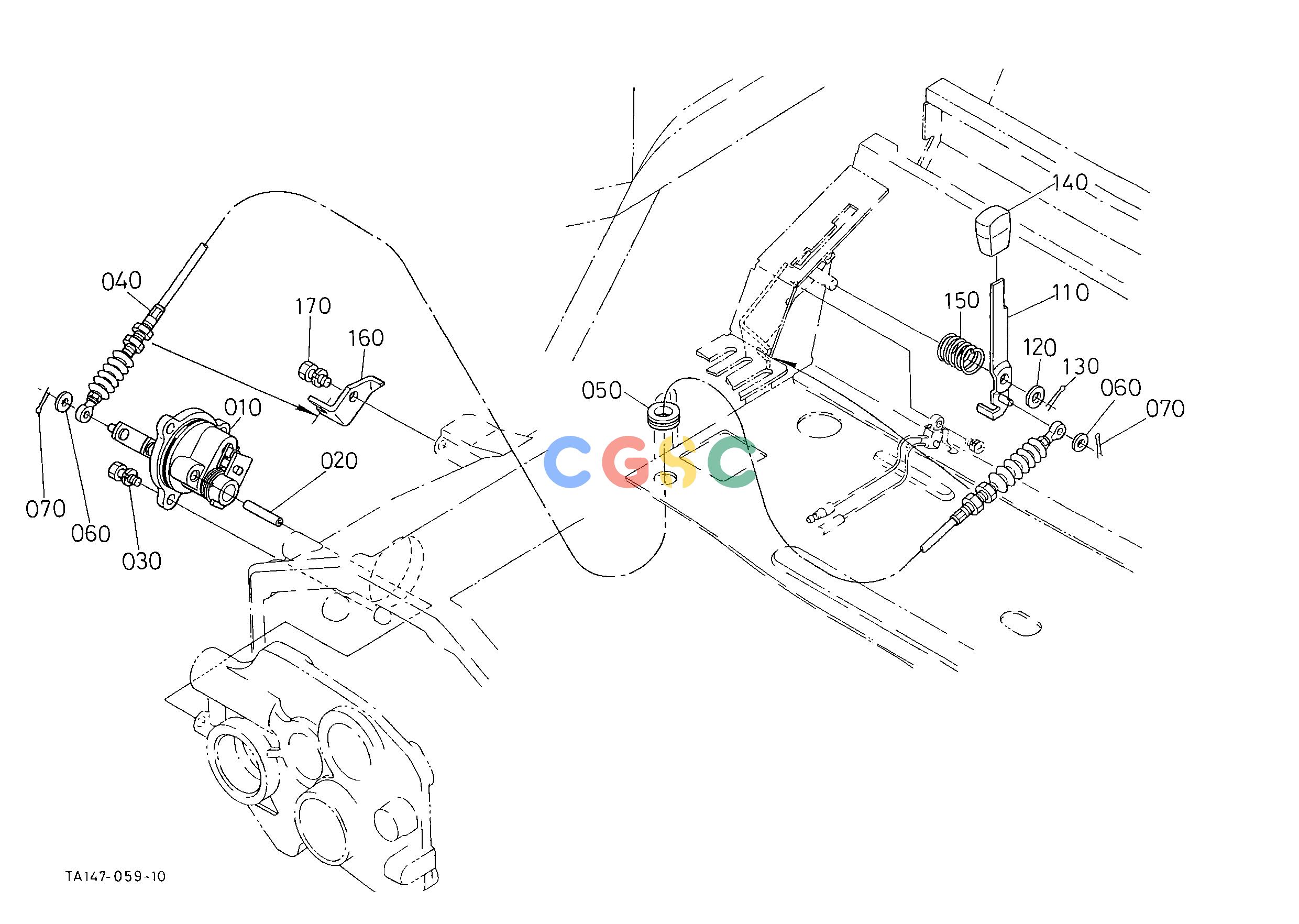

久保田零件查询E12200 PTO CLUTCH CONTROL LEVER [GST TYPE] SPEED CHANGE SHIFT FORK/SHIFT LEVEREPC Kubota online
广数供应链运营团队, 18 02月, 2025，浏览：
849 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 010. |
TA04069300
|
[1] |
ASSY VALVE I-PTO
|
2.1010(lbs); 0.955
|
| 020. |
3653027273
|
[1] |
PIPE HYDRAULIC
|
0.0110(lbs); 0.005
|
| 030. |
0112350820
|
[3] |
BOLT
|
0.0242(lbs); 0.011
|
| 040. |
TA14024650
|
[1] |
WIRE PTO
|
0.3080(lbs); 0.140
|
| 050. |
5322654390
|
[1] |
GROMMET
|
0.0088(lbs); 0.004
|
| 060. |
0401250060
|
[2] |
WASHER PLAIN
|
0.0022(lbs); 0.001
|
| 070. |
0551151612
|
[2] |
PIN SPLIT
|
0.0022(lbs); 0.001
|
| 110. |
TA04069710
|
[1] |
LEVER I-PTO
|
0.1166(lbs); 0.053
|
| 120. |
0401360080
|
[1] |
WASHER PLAIN
|
0.0044(lbs); 0.002
|
| 130. |
0551150215
|
[1] |
PIN SPLIT
|
0.0022(lbs); 0.001
|
| 140. |
3691927820
|
[1] |
GRIP PTO LEVER
|
0.0330(lbs); 0.015
|
| 150. |
3325129630
|
[1] |
SPRING
|
0.0286(lbs); 0.013
|
| 160. |
TA04069600
|
[1] |
STAY WIRE
|
0.1012(lbs); 0.046
|
| 170. |
0112360814
|
[1] |
BOLT
|
0.0220(lbs); 0.010
|
| 170. |
0112350816
|
[1] |
BOLT
|
0.0242(lbs); 0.011
|
